LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

Name: LJ8A31ZBX 15mm DC type NO NPN inductive proximity sensor
Brand: Kampa
Price: 0.80 USD

Quality LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor for sale

Model Number : LJ8A3-1-Z/BX

Place of Origin : Zhejiang, China

Brand Name : Kampa

Usage : Position Sensor

Theory : Inductance Sensor, inductance sensor

Output : Switching Transducer, Switching Transducer

Product name : LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

Delay distance : 10% below of the detection distance

Standard detection object : Iron 8*8*1mm

Protection level : IP67

Response frequency : DC:0.5kHz AC:25kHz

Detection object : Magnetic metal

Housing Material : Nickel plated brass

Detection surface Material : ABS

Packaging Details : Normal packing

Port : Ningbo

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $0.80 - $2.00/Pieces

Contact Now

LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

1.Specification

Product information
Type				LJ8A3

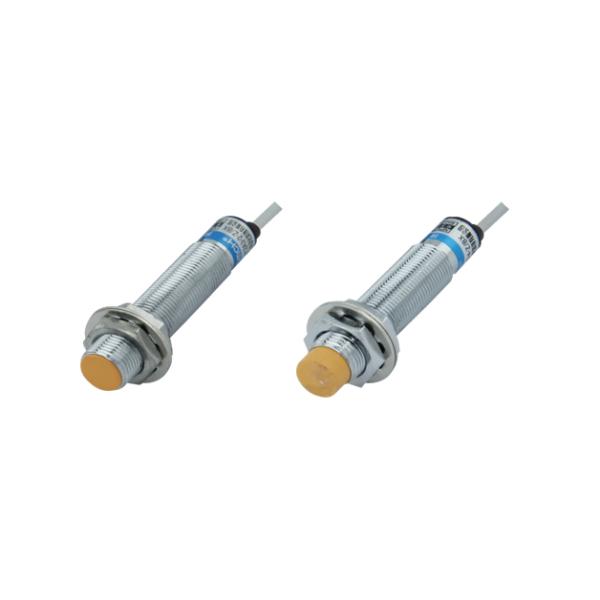

Product image
Dimension

Mounting way				Screen shield type	Non-screen shield type
Type	DC type	NPN	NO	LJ8A3-1-Z/BX	LJ8A3-2-Z/BX
			NC	LJ8A3-1-Z/AX	LJ8A3-2-Z/AX
			NO+NC
		PNP	NO	LJ8A3-1-Z/BY	LJ8A3-2-Z/BY
			NC	LJ8A3-1-Z/AY	LJ8A3-2-Z/AX
			NO+NC
		Two-wire	NO	LJ8A3-1-Z/EX	LJ8A3-2-Z/EX
			NC	LJ8A3-1-Z/DX	LJ8A3-2-Z/DX
	AC type	Two-wire	NO	LJ8A3-1-J/EZ	LJ8A3-2-J/EZ
			NC	LJ8A3-1-J/DZ	LJ8A3-2-J/DZ
		Three-wire	NO+NC
Detection distance				1.5mm ± 10%	2mm ± 10%
Set distance				0-1.2mm	0-1.8mm
Delay distance				10% below of the detection distance
Detection object				Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Standard detection object				Iron 881mm
Response frequency				DC:0.5kHz AC:25kHz
Supply voltage				DC type:DC 12-24V(6-36V)Impulse(P-P)10% below AC type:AC 110-220V(36-250V)50/60Hz
Withstand voltage				AC1000V 50/60HZ 1min between charging part and housing
Voltage influence				Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current				N.P type:13mA below, D type:0.8mA below,A type:1.7mA below
Control output				N.P type:300mA below, D type:200mA below,A type:400mA below
Loop protection				N.P.D type:reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption
Ambient temperature & humidity				During operation,storage:individually -30—+65℃ ( no freeze, no drew),During operation,storage:individually 35—95% RH
Temperature influence				Temperature range -30—+65℃,at+23℃, ±15%detection distance Temperature range -25—+60℃,at+23℃, ±10%detection distance
Insulation impedance				50MΩ above(DC500 megameter)between charging part and housing
Material				Housing:Nickel plated brass Detection surface:ABS
Protection level				IP67( IEC specification)

LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

Packaging & Shipping

LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

Company Information

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as

Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,

Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.

We are manufacturer and have ten years experience in Electrical industry.

Our Services

LJ8A3-1-Z/BX 1.5mm DC type NO NPN inductive proximity sensor

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
