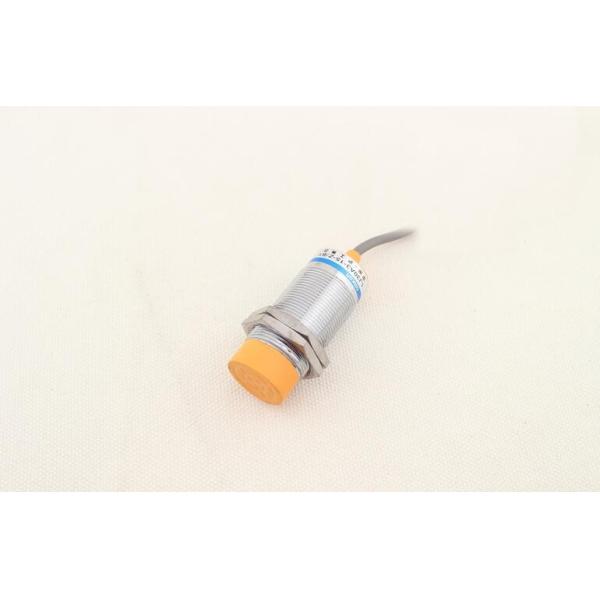

LJ30A3-15-Z/BY NO PNP DC inductance approach switch sensors proximity switches

Name: LJ30A315ZBY NO PNP DC inductance approach switch sensors proximity switches
Brand: KAMPA
Price: 3.00 USD

Quality LJ30A3-15-Z/BY NO PNP DC inductance approach switch sensors proximity switches for sale

Model Number : LJ30A3-15-Z/BY

Place of Origin : Zhejiang, China

Brand Name : KAMPA

Usage : Magnetic Sensor

Theory : Inductance Sensor

Output : Switching Transducer

Detection distance : 15mm + 10%

Set the distance : 0 - 13mm

Lag distance : The detection range below 10%

Object detection : Magnetic metal (non magnetic metal detection distance decreases)

Standard test object : Iron 54*54*1mm

Frequency response : DC:0.5kHz AC:25Hz

Current consumption : Type N.P: 13mA, D: 0.8mA, A: 1.7mA

Output control : Type N.P: 300mA, D: 200mA, A: 400mA

Insulation resistance : The above 50M (DC500 megameter) charging part and the shell.

Protection structure : IP67 (IEC)

Packaging Details : standard export carton

Port : NINGBO/SHANGHAI

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 100 Pieces

Price : $3.00 - $12.00/Pieces

Contact Now

LJ30A3-15-Z/BY capacitive proximity switch sensor from alibaba premium market

model	LJ30A3-15-.
Product picture

size
Installation mode				Nonshielded
model	DC type	NPN	NO	LJ30A3-15-Z/BX
			NC	LJ30A3-15-Z/AX
			NO+NC	LJ30A3-15-Z/CX
		PNP	NO	LJ30A3-15-Z/BY
			NC	LJ30A3-15-Z/AY
			NO+NC	LJ30A3-15-Z/CY
		second line—an advisory post	NO	LJ30A3-15-Z/EX
			NC	LJ30A3-15-Z/DX
	AC	second line—an advisory post	NO	LJ18A3-15-J/EZ
			NC	LJ30A3-15-J/DZ
		Three line	NO+NC	LJ30A3-15-J/EDZ
Detection distance				15mm + 10%
Set the distance				0 - 13mm
Lag distance				The detection range below 10%
Object detection				Magnetic metal (non magnetic metal detection distance decreases)
Standard test object				Iron 54541mm
Frequency response				DC:0.5kHz AC:25Hz
supply voltage				DC type: DC12 - 24V (6-36V) pulse (P-P) below 10%, AC: AC110 - 220V (36 - 250V) 50/60Hz
Withstanding voltage				AC1000V 50/60Hz 1min charging part and the shell.
The influence of voltage				Within the rated supply voltage range 15% rated supply voltage of + 10% detection distance
Current consumption				Type N.P: 13mA, D: 0.8mA, A: 1.7mA
Output control				Type N.P: 300mA, D: 200mA, A: 400mA
Loop protection				Type N.P.D: reverse connection protection, surge absorption, load short-circuit protection, type A: surge absorption
The environment temperature and humidity				When the movement, save the -30 +65 C (ice, frost), action, save time: 35 - 95%RH
The influence of temperature				The temperature range of -30 DEG C - +65, +23 C, + 15% detection distance The temperature range of -25 DEG C - +60, +23 C, + 10% detection distance
Insulation resistance				The above 50M (DC500 megameter) charging part and the shell.
texture of material				Shell: nickel plated brass surface detection: ABS
Protection structure				IP67 (IEC)

LJ30A3-15-Z/BY NO PNP DC inductance approach switch sensors proximity switches
