2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester

Name: 2p 10ka20ka 420v House SPD Surge Protector Device Low Voltage Arrester
Brand: KAMPA, kampa
Price: 3.50 USD

Quality 2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester for sale

Brand Name : KAMPA, kampa

Model Number : LR1-20D

Place of Origin : Zhejiang, China

MOQ : 10 Pieces

Price : $3.50 - $4.80/Pieces

Supply Ability : 5000 Piece/Pieces per Week

Contact Now

SPD 1p+N 10KA~20KA D ~385V House Surge Protector protection Protective Low-voltage Arrester Device

2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester

2. Green/Red window color showing working status,green=normal ,red=abnormal.

Maximum continuous operating voltage Uc(V)	385V AC
Voltage protection level up(KV)	≤1.2KV
.Nominal discharge current In(8/20μs)KA	5kA
.Maximum discharge current Imax(8/20μs)KA	10kA
Response times(ns)	<25 ns
Test standard	GB18802.1 IEC61643-1
Operating environment°C	-40°C~85°C
Relative humudity(25°C)	≤95%
Installation	Standard rail 35mm
Material of outer covering	Fiber glass reinforced plastic

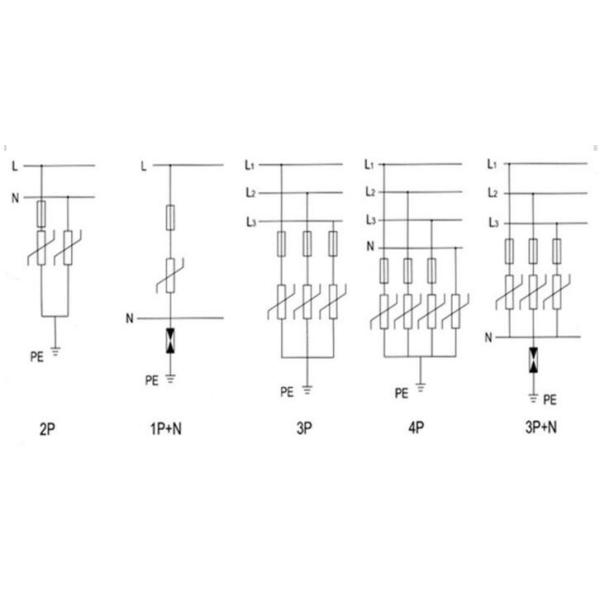

Principle diagram:

2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester

Packaging & Shipping

Company Information

YueqingKampaElectricCo.,Ltd.isEstablishedin1990.Hasvarietyofgoods,suchasRelay,Circuitbreaker,Switches,Thermocouple,Thermostat,Temperaturecontroller,Switchpowersupply,AVS,Heatsink,Heater,Distributionbox,Junctionboxandsoon.WearemanufacturerandhavetenyearsexperienceinElectricalindustry.

Our Services

2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

2p 10ka-20ka 420v House SPD Surge Protector Device Low Voltage Arrester Images
